	Two Plate System
	Three Plate System

Standard Mould Base with pocket.

Standard Mould Base

Features

	Complete mould base kit with finished Plates, Guide Pillars, Bushes and return Pins assembled
	Prompt Delivery Time
	Wide selection from 100 x 100 to 1000 x 800 mm
	Interchangeability of parts
	Helps in cutting down lead time of mould manufacture

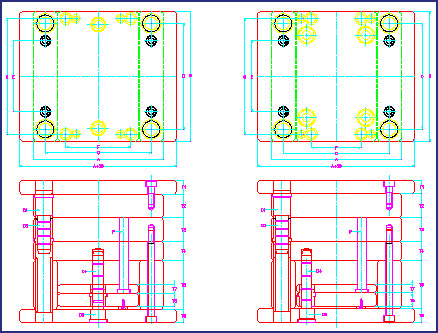

MOULD BASE

A	B	C	D	E	F	G	H	J	K	L	M	D1&D2	T1&T6	T2&T3	T4	T5	T7	T8
110	110	80	80	40	36	90	150	54	50	36	66	24/16	20	26/56	26	46/66	10	12
120	140	90	106	56	40	116	160	62	58	40	92	24/16	20	26/56	26	46/66	10	12
160	160	126	126	76	72	136	200	98	94	72	104	24/16	20	26/56	26	46/66	10	12
160	200	126	166	116	72	172	200	98	94	72	140	24/16	20	26/56	26	46/66	10	12
160	250	126	216	166	72	222	200	98	94	72	190	24/16	20	26/56	26	46/66	10	12
160	300	126	266	216	72	272	200	98	94	72	240	24/16	20	26/56	26	46/66	10	12
200	200	150	150	84	86	170	250	112	108	86	134	28/20	26	26/86	36	66/106	12	16
200	250	150	200	134	86	220	250	112	108	86	184	28/20	26	26/86	36	66/106	12	16
200	300	150	250	184	86	270	250	112	108	86	234	28/20	26	26/86	36	66/106	12	16
200	350	150	300	234	86	320	250	112	108	86	284	28/20	26	26/86	36	66/106	12	16
200	400	150	350	284	86	370	250	112	108	86	334	28/20	26	26/86	36	66/106	12	16
220	250	170	200	128	104	220	270	132	128	104	182	32/24	26	26/106	36	66/106	16	26
250	250	200	200	136	130	220	300	160	156	130	182	32/24	26	26/106	36	66/106	16	26
250	300	200	250	186	130	270	300	160	156	130	232	32/24	26	26/106	36	66/106	16	26
250	350	200	300	236	130	320	300	160	156	130	382	32/24	26	26/106	36	66/106	16	26
250	400	200	350	286	130	370	300	160	156	130	332	32/24	26	26/106	36	66/106	16	26
250	450	200	400	336	130	420	300	160	156	130	382	32/24	26	26/106	36	66/106	16	26
250	500	200	450	386	130	470	300	160	156	130	432	32/24	26	26/106	36	66/106	16	26
300	300	250	250	180	180	260	350	210	206	180	220	32/24	26	26/106	36	66/106	16	26
300	350	250	300	230	180	310	350	210	206	180	270	32/24	26	26/106	36	66/106	16	26
300	400	250	350	280	180	360	350	210	206	180	320	32/24	26	26/106	36	66/106	16	26
300	450	250	400	330	180	410	350	210	206	180	370	32/24	26	26/106	36	66/106	16	26
300	500	250	430	380	180	460	350	210	206	180	420	32/24	26	26/106	36	66/106	16	26
300	600	250	550	480	180	560	350	210	206	180	520	32/24	26	26/106	36	66/106	16	26
300	700	250	650	580	180	660	350	210	206	180	620	32/24	26	26/106	36	66/106	16	26
350	350	276	276	186	180	310	400	224	220	180	250	32/24	26	26/106	36	66/106	16	26
350	400	276	326	236	180	350	400	224	220	180	300	32/24	26	26/106	36	66/106	16	26
350	450	276	376	286	180	400	400	224	220	180	350	32/24	26	26/106	36	66/106	16	26
350	500	276	426	336	180	450	400	224	220	180	400	32/24	26	26/106	36	66/106	16	26
350	550	276	476	386	180	500	400	224	220	180	450	32/24	26	26/106	36	66/106	16	26

A	B	C	D	E	F	G	H	J	K	L	M	D1&D2	T1&T6	T2&T3	T4	T5	T7	T8
350	600	276	526	436	180	550	400	224	220	180	500	42/34	36	36/186	56	66/126	16	26
350	700	276	626	536	180	650	400	224	220	180	600	42/34	36	36/186	56	66/126	16	26
350	800	276	726	636	180	750	400	224	220	180	700	42/34	36	36/186	56	66/126	16	26
400	400	326	326	234	230	350	450	272	268	230	300	42/34	36	36/186	56	66/126	16	26
400	450	326	376	284	230	400	450	272	268	230	350	42/34	36	36/186	56	66/126	16	26
400	500	326	426	334	230	450	450	272	268	230	400	42/34	36	36/186	56	66/126	16	26
400	550	326	476	384	230	500	450	272	268	230	450	42/34	36	36/186	56	66/126	16	26
400	600	326	526	434	230	550	450	272	268	230	500	42/34	36	36/186	56	66/126	16	26
400	700	326	626	534	230	650	450	272	268	230	600	42/34	36	36/186	56	66/126	16	26
400	800	320	726	634	230	750	450	272	268	230	700	42/34	36	36/186	56	66/126	16	26
400	900	320	834	734	230	850	450	272	268	230	800	42/34	36	36/186	56	66/126	16	26
450	450	376	376	284	280	400	550	324	320	280	350	42/34	36	36/186	56	66/126	16	26
450	500	376	426	334	280	450	550	324	320	280	400	42/34	36	36/186	56	66/126	16	26
450	600	376	526	434	280	550	550	324	320	280	500	42/34	36	36/186	56	66/126	16	26
500	500	390	390	280	274	420	600	326	322	274	340	42/34	36	36/186	56	66/126	16	26
500	600	390	490	380	274	520	600	326	322	274	440	42/34	36	36/186	56	66/126	16	26
500	700	390	590	480	274	620	600	326	322	274	540	50/42	36	36/186	56	66/126	16	26
500	800	390	690	580	274	720	600	326	322	274	640	50/42	36	36/186	56	66/126	16	26
500	900	390	790	680	274	820	600	326	322	274	740	50/42	36	36/186	56	66/126	16	26
500	1000	390	890	780	274	920	600	326	322	274	840	50/42	36	36/186	56	66/126	16	26
550	550	456	456	336	340	470	650	392	388	340	390	50/42	36	36/186	56	66/126	16	26
600	600	500	500	380	380	524	700	434	430	380	444	50/42	36	36/186	56	66/126	16	26
600	700	500	600	480	380	624	700	434	430	380	544	50/42	36	36/186	56	66/126	16	26
600	800	500	700	580	380	724	700	434	430	380	644	50/42	36	36/186	56	66/126	16	26
600	900	500	800	680	380	824	700	434	430	380		50/42	36	36/186	56	66/126	16	26
600	1000	500	900	780	380	924	700	434	430	380	844	50/42	36	36/186	56	66/126	16	26
700	700	600	600	480	480	624	800	534	530	480	544	50/42	36	36/186	56	66/126	16	26
700	800	600	700	580	480	724	800	534	530	480	644	50/42	36	36/186	56	66/126	16	26
700	900	600	800	680	480	824	800	534	530	480	744	50/42	36	36/186	56	66/126	16	26
700	1000	600	900	780	480	924	800	534	530	480	844	50/42	36	36/186	56	66/126	16	26
800	800	700	700	580	580	724	900	634	630	580	644	50/42	36	36/186	56	66/126	16	26
800	900	700	800	680	580	824	900	634	630	580	744	50/42	36	36/186	56	66/126	16	26
800	1000	700	900	780	580	924	900	634	630	580	844	50/42	36	36/186	56	66/126	16	26
